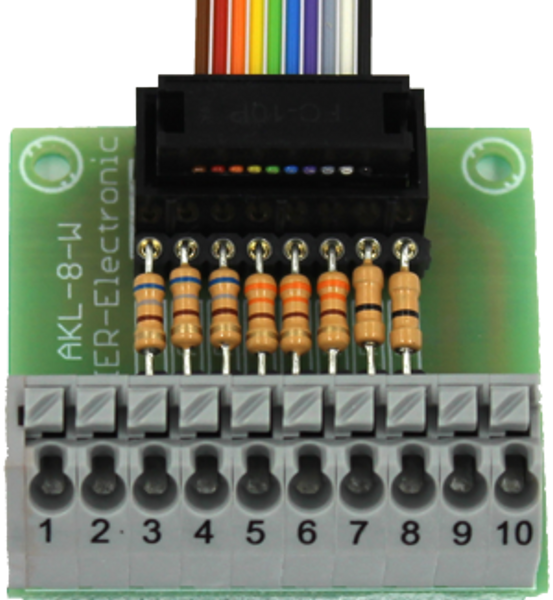

Beier Terminal clamp for switching outputs AKL-8-W, with plugable resistors

Description

The AKL-8-W allows a comfortable wiring of the switching outputs for these modules:

Sound speed controller SFR-1
Speed controller UFR-1230
Double speed controller UFR-1230-D

As a special feature on the AKL-8-W terminal are 8 sockets for plugable resistors to facilitate the connection of LEDs.

At the spring-loaded terminal the outputs 1-8 are available for an easy connection of consumers.
The clamps 9 and 10 are for the easy distribution of the plus pole.

The terminal can be connected directly to the modules with a pluggable ribbon cable.

Included with the AKL-8-W are each 8 resistors with values of 0 ohms (only 1 black ring), 150 ohms (brown, green, brown, gold) 330 Ohm (orange, orange, brown, gold) and 680 Ohm (blue, gray, brown, gold).

More information can be found in the manual (PDF).

Technical Data

Terminal clamp:	Sound speed controller SFR-1: Terminal 1 to 8: Switching outputs 1 to 8 and 9 to 16(minus switching) Terminal 9 to 10: Positive pole of the supply voltage UFR speed controller: Terminal 1 to 8: Switching outputs from speed controller Terminal 9 to 10: Positive pole of the supply voltage
Connecting cable:	10 pin ribbon cable, 20 cm long
Size:	38 x 36 x 17 mm
Weight:	18 g
