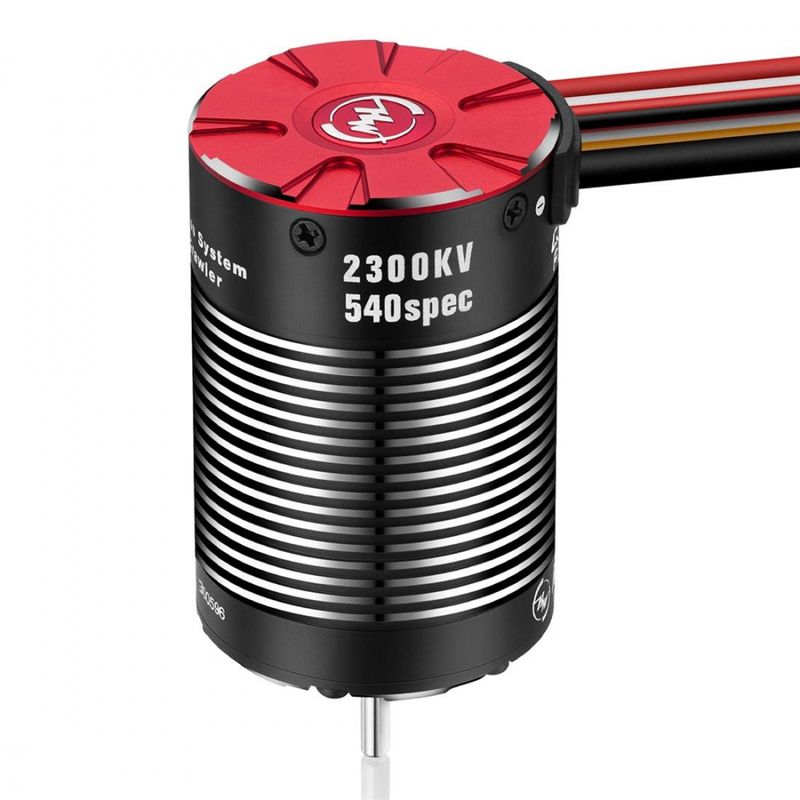

Hobbywing QuicRun Fusion PRO FOC System 2300KV

Art.nr: 30120402

2.299,-

Du vil motta en e-post så snart produktet er på lager!

En feil har oppstått. Prøv igjen

HobbyWing

Informasjon
Produsent

Hobbywing QuicRun Fusion PRO FOC System 2300KV

Fusion Crawler system er et gjenomtenkt og plasseringsvennlig system hvor regulatoren sitter integrert i motoren. Kompatibelt med 2-3S lipo og leveres uten programmeringskort. Størrelsen tilsvarer en 550-motor slik at systemet passer direkte inn i de aller fleste modeller. Fusion systemet kjennetegnes ved ekstremt stille gange og mye kraft/nøyaktighet ved lave turtall, med en god dragbrake som er perfekt for crawlere. (Leveres uten prog box/kort)

Passer for	1/10 Crawlere
Strømtrekk	Maks 60A kont.
Batteri	2-3S lipo el. 6-9 cell nimh
BEC	6.0-7.4V, 6A switch mode
Størrelse	37x58mm
Aksling	3.17mm/Lengde 16mm
Ledninger	14awg 33cm
Kontakt	XT60
Vekt	209g

FOC - Integrated Power System for Crawlers

Three Operating Modes:

Normal - Forwards & reverse with brake
Normal - Forward & reverse
Constant Speed - Forward & reverse

Features:

The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.
The FOC driving mode, low speed torque is strong. Smooth running at extreme low speed, which is far superior to the common sensored brushless power system, even better than the brushed power.
Thanks to the sine wave driving mode, the whole system has high efficiency, small heat, and effectively extends the endurance time; and the motor runs more quietly and soft.
The protection grade of the whole system is IP67, with excellent waterproof and dustproof performance. Under various weather conditions, the whole system can easily deal with the complex road surface containing silt, ice and snow, and water.
Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function of 1:1 vehicle, making the control handy.
Active drag brake force adjustment, providing unprecedented parking capacity on slope.
With strong built-in switch mode BEC, the continuous current is up to 6A, and support switch between 6V and 7.4v, easy to drive various powerful steering servo and high-voltage steering servo.
Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
It supports LED program box to set ESC parameters, and has independent parameter setting interface, which is integrated on electronic switch, making setting parameters more convenient (Not included)

Specifications:
